Product Details:
|
Name: | Medical X-ray Thermal Printer | Type: | Dry Thermal Film Printer |
---|---|---|---|
Properties: | Medical Printer | Weight: | 40kg |
Function: | Medical Radiography,medical Film Printer | Geometrical: | 320 Dpi(12.6pixel/mm) |
Highlight: | ISO Diagnostic X Ray Film Printer,14 bits X Ray film Printer,600W digital x ray machine printer |
Medical Image Printer X-Ray Imaging Diagnostic Images Film Blue Digital X Ray Film

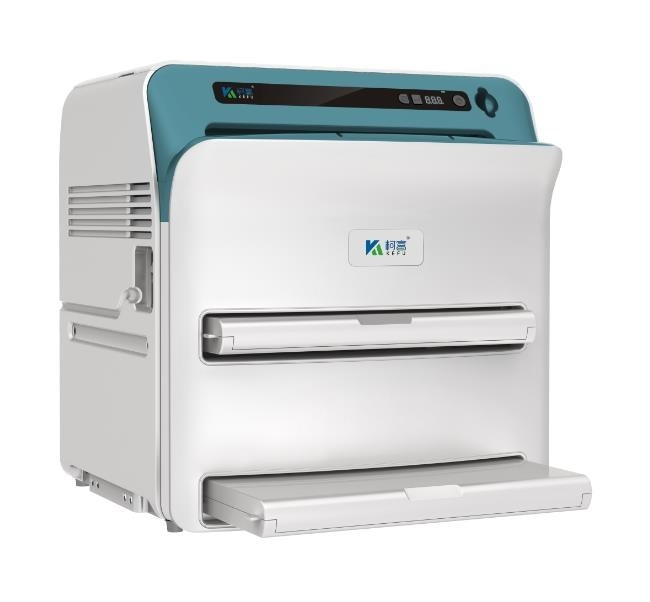

Medical Image Printer is a thermal printer that prints DICOM medical images, Medical dry thermal film is the
technologically latest imaging media. It is perfectly compatible with CR, DR, MRI, CT, digital gastrointestinal machines,
nuclear medicine, portable X-ray imaging, dentistry, etc. The film could get an excellent diagnostic image by medical dry direct
thermal imaging technology.
Print Technology | Direct thermal (dry, Operation in light) |
Resolution | 320dpi (12.6 Pixels/mm) |
Print speed | 14″ x 17″≥80 sheets/h;8″ x 10″≥100 sheets/h |
Grayscale Contrast Resolution | 14 bits |
Film Supply | Roller |
Film Magazine | Two Magazines, 100 sheets of film in each magazine |
Film Sizes | 8″ x10″, 10″ x12″, 11″ x14″, 14″ x17″ |
Film Type | Medical Dry Thermal Film(blue and clear substrate) |
Interfaces | 10/100/1000 Base-T Ethernet (RJ-45) |
Network Protocol | DICOM 3.0 |
Image Quality | Automatic calibration by built-in densitometer |
Display | Touchscreen |
Power | 220- 240V, 50/60Hz, 600W printing, 75W idle |
Weight | 45Kg |
Operating Temperature | 0″C-35″C |
Storage Temperature | -20″C-40″C |
Storage Humidity | <95% |
Printer Stand | Optional |
5. Can you provide a free sample for evaluation?
Of course, the plant is able to supply free rolls (3m or 5m in length) or sheets (5 pieces) for testing, but the freight cost should be charged by the clients.
