Product Details:
|
| Properties: | Medical X-ray Equipments & Accessories | Material: | PET |
|---|---|---|---|
| Name: | Medical Dry Laser Film | Type: | Laser Printing |
| Size: | 8 X 10 Inch | Key Words: | Waterproof |
| Highlight: | 25cm Medical Dry Laser Imaging Film,20cm Medical Dry Laser Imaging Film,Waterproof PET Fuji X Ray Film Sheets |
||

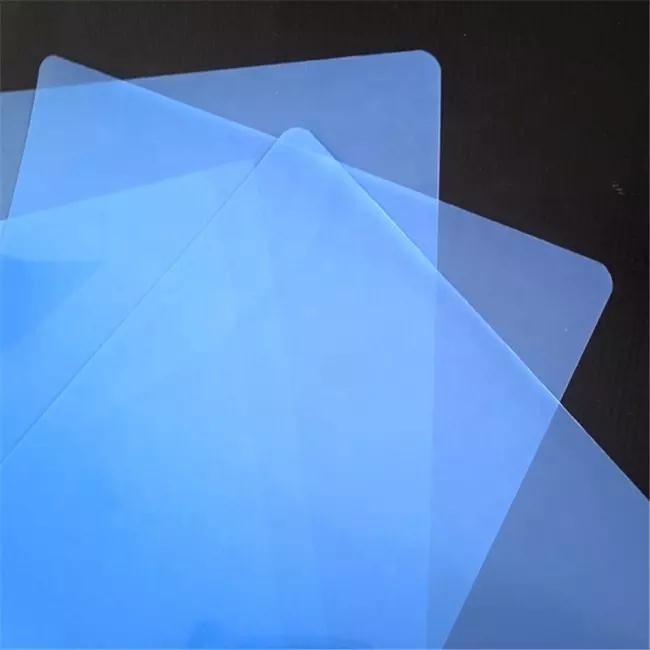

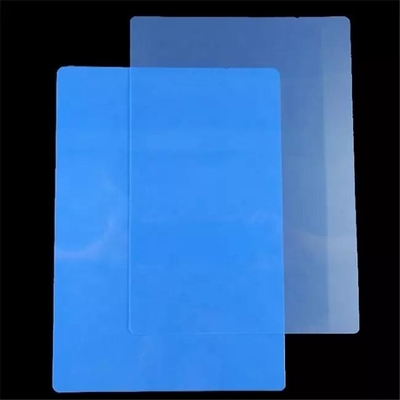

20 x 25 cm Medical Dry Laser Imaging Film Waterproof PET Fuji X-ray Film Sheets
1. Product Description
Medical dry films designed especially for Dry Laser Imagers. This new film is thermally processed and does not require wet processing chemistry, which can accurately through the computer processing of all kinds of medical imaging, get rid of the traditional silver halide product show fixing bath processing program, eliminate the flushing processing waste liquid pollution to the environment.
2. Product parameter
| Structure | Composed of the photosensitive emulsion layer, PET base material, and the anti-halo layer |
| Maximum Transmission Density | ≥3.0 D |
| Minimum Transmission Density | ＜0.25 D |
| Size | 8 x 10 inch (20 x 25cm) |
| Thickness | 205±8 μm |
| Haze | ≤20% |
3. Feature
4. Available Size & Package
| Size | Size | Sheets/pack | Packs/Box |
| 8x10 inch | 20cm x 25cm | 125 | 6 |
| 10x12 inch | 25cm x 30cm | 125 | 6 |
| 10x14 inch | 25cm x 35cm | 125 | 6 |
| 14x17 inch | 35cm x 43cm | 100 | 5 |
5. Application
6. Storage
The goods should be stored in a dry, cool, clean indoor, prevent sunlight directly Irradiation, acid-base gas.
Specific requirements are as follows:
1. The temperature, humidity, temperature of 10 ºC to 23 ºC, relative humidity 30% ~ 65%, far away from the heat source.
2. Gas: storage space can not have hydrogen sulfide, ammonia, sulfur dioxide and formaldehyde. Such as: acid-base gas.
3. Stacking form: Keep upright when storage, so as to avoid adverse effect by pressure.
